304 Stainless Steel York 431 mesh Pad Demister
Mesh Pad Demister Introduction

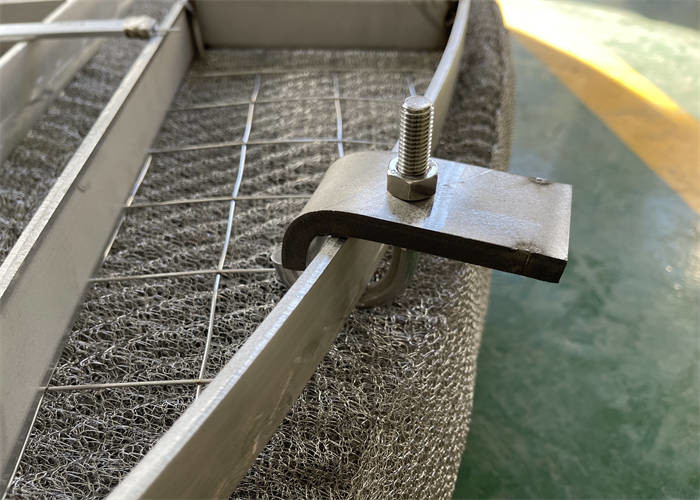

The wire mesh demister is composed of a gas-liquid filter mesh pad (made of several blocks) and a grid. The mesh block is composed of several layers of tiled corrugated gas-liquid filters, grilles and spacer rod. It is used to separate mists with a diameter of more than 3~5μm entrained in the gas.
Mesh Pad Demister Usage
Chemical,petroleum,medicine, metallurgy, aerospace, ship, environmental protection engineering distillation, absorption and other processes in the gas-liquid separation, gas separation, oil and gas separation.
Mesh Pad Demister Material
| Name | Mesh Pad Demister |
| Material | 316 , 316L , 304 , 304L SS , etc |
| Specification | Diameter : DN300-6400mm
Thickness : 100-500
Installation method : top loading type and the bottom loading |
Metal Wire Mesh Pad Demister Type and Applications
| Wire Dia. Mm | Mesh Density Kg/m3 | Surface Area M2/m3 | Normal Micron Rating | Application |
| 0.15 | 195 | 650 | 3 | Very high efficiency in clean service |
| 0.15 | 145 | 480 | 4 | Fine droplet removal in clean service |
| 0.15 | 112 | 375 | 5 | General purpose in clean service |
| 0.28 | 195 | 355 | 5 | Optimum efficiency & pressure drop |
| 0.28 | 170 | 310 | 6 | General purpose not totally clean |
| 0.28 | 145 | 265 | 8 | Heavy Duty e.g. Oil & Gas Separators |
| 0.28 | 110 | 200 | 10 | Light fouling |
| 0.28 | 80 | 145 | 12 | Moderate fouling |
Mesh Pad Demister Advantages
First, it is simple in structure, light in weight, large in porosity, small in pressure drop, large in contact surface area, and high in defoaming efficiency. Easy installation, operation and maintenance, long service life.
The second is to separate the mist in the gas, improve the operating conditions, optimize the process indicators, reduce equipment corrosion, extend the service life of the equipment, improve the processing capacity, recover valuable substances, protect the environment, and reduce air pollution.
Company Profile
Anping County Hardware Mesh Products Co., Ltd. is located in Anping County, Hebei Province, known as the "Hometown of Chinese Wire Mesh". The company is a dedicated manufacturer of wire mesh demisters. The company has more than 90 sets of knitted mesh equipment.The wire mesh demister is the main product of our company. Most of our employees are operation, maintenance, and installation personnel with practical experience, who can provide customers with the required engineering consultation and installation of tank filtration. solution.Nearly 20 years of experience in the production of mist eliminator mats, knitted wire mesh, and other packaging materials.
We have ISO9001 certification and a strict quality control system in the QC department of the enterprise.
We claim that all mist eliminator pads our customers receive are qualified and perform perfectly. We have different specifications.
The filtration fineness can reach 3μm~5μm. In addition to standard and popular sizes, we can also customize specific applications according to customer needs.
During the company's development, through continuous on-the-spot inspections, personal exchanges and cooperation with customers, and comprehensive discounts and technical support, we have won strong customer support and praise.
The company's performance has maintained an annual output value growth rate of 30-40. Our employees pursue the policy of "enterprising, truth-seeking, rigorous and united", continue to develop and innovate, take technology as the core, and wholeheartedly provide you with cost-effective products, high-quality engineering design, and services.
Welcome customer consultation and I sincerely look forward to cooperating with you!
